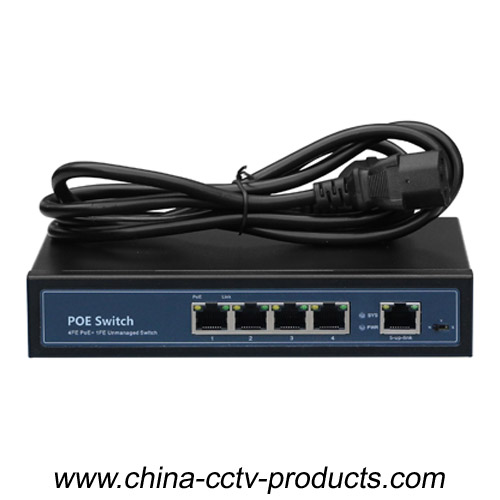

CCTV 4 Ports 10/100Mbps POE Switch With 1 RJ45 Uplink (POE0410B)

Product Name: CCTV 4 Ports 10/100Mbps POE Switch With 1 RJ45 Uplink (POE0410B)
Weight: 1 Kg
Model NO.: POE0410B
Size: 200mm*120mm*40mm(L*W*H)
Origin: Zhejiang, China
Brand Name: Chinasky
Delivery Time: 5-12 working days

Product Details: CCTV 4 Ports 10/100Mbps POE Switch With 1 RJ45 Uplink (POE0410B)

4 Ports 10/100Mbps POE Switch With 1 RJ45 Uplink (POE0410B)

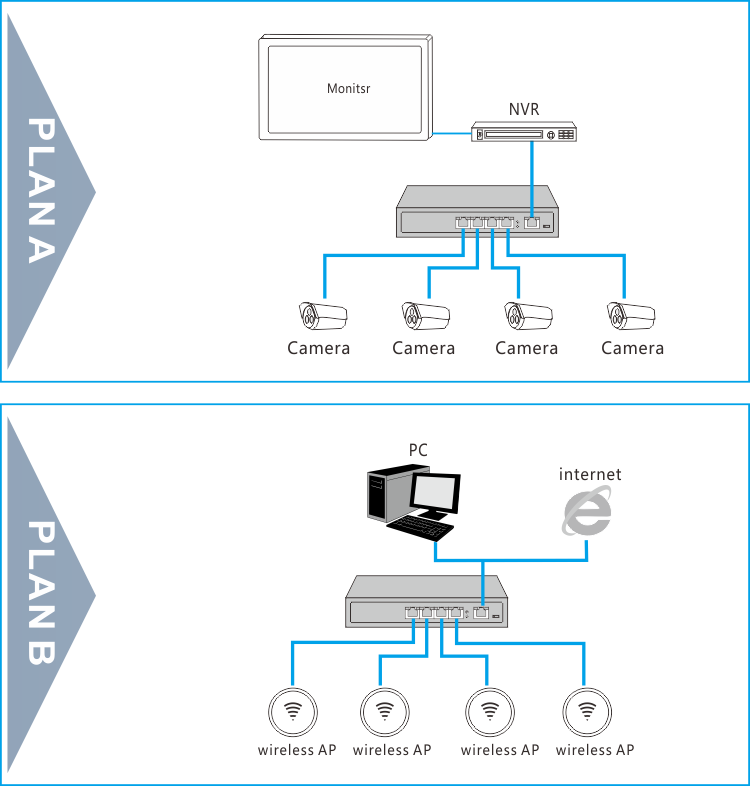

POE0410B is applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission.

Main Features:

◆ 4FE POE+1FE Uplink.

◆ Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.

◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.

◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.

◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.

◆ Auto MDI/MDIX.

◆ Upstream port lightning protection.

◆ MAX 30W, MAX power 100W.

◆ Store-and-forward.

◆ All ports support wire speed switch, jumbo frame transmission.

◆ Zero QFD, self-adaption.

◆ Panel lights can monitor operative mode and malfunction analysis.

◆ Over-voltage and under-voltage protection (Some other manufacturers' products don't support this).

Specifications:

Model		4 Ports 10/100Mbps POE Switch With 1 RJ45 Uplink (POE0410B)
Electric Port	100M Rj45	1
	100M POE	4
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	1G
	MAC	1K
Environmental		Working Temperature: -10℃-55℃ Storage temperature :-40℃-70℃
		Working Humidity :10%-90% RH non-condensing Storage Humidity:5%-90% RH non-condensing
POE		IEEE802.3af/at, MAX 30W, MAX power 100W
power		AC 110-265V 50/60HZ
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control
Default Mode		Common switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3 (cat3) and above UTP/STP (≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP (≤100m)
Physical Specifications		Product Size:200mm120mm45mm(LWH) package Size:244mm193mm65mm(LWH) 1kg
