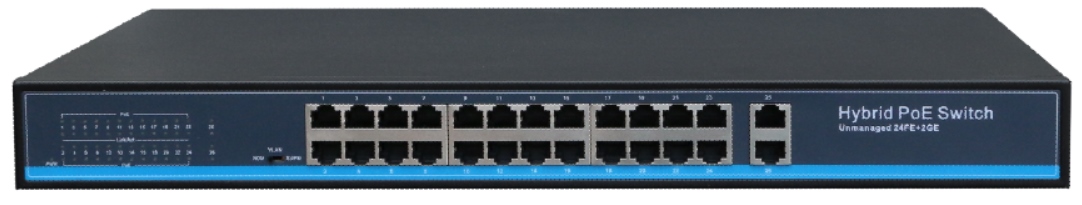

CCTV Security System 24 Ports PoE Switch With Built-in Power (POE2420-2)

Product Name: CCTV Security System 24 Ports PoE Switch With Built-in Power (POE2420-2)
Weight: 4 Kg
Weight: 4000 g
Model NO.: POE2420-2
Size: 440mm*290mm*45mm（L*W*H）
Origin: CHINA
Packing: 5 SETS /BOX
Brand Name: CHINASKY
Delivery Time: 5-12 work days
Minimum Order: 1
Supply Ability: 1000sets/month
Quality System Certification: ISO9001，COHS

Product Details: CCTV Security System 24 Ports PoE Switch With Built-in Power (POE2420-2)

CCTV Security System 24 Ports PoE Switch With Built-in Power (POE2420-2)

POE2420-2 is applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission.

Main Features

◆ 24FE POE+2GE.

◆ Comply to IEEE 802.3.IEEE 802.3u.IEEE 802.3ab.

◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.

◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.

◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.

◆ Auto MDI/MDIX.

◆ Upstream port lightning protection.

◆ MAX 30W, MAX power 300W.

◆ Store-and-forward.

◆ All ports support wire speed switch, jumbo frame transmission.

◆ Zero QFD, self-adaption.

◆ Panel lights can monitor operative mode and malfunction analysis.

◆ Over-voltage and under-voltage protection (Some other manufacturers' products don't support this).

Model		POE2420-2
Electric Port	1000M Rj45	2
	100M POE	24
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	16G
	MAC	8K
Environmental		Working Temperature: -10℃-55℃ Storage temperature :-40℃-70℃
		Working Humidity :10%-90% RH non-condensing Storage Humidity:5%-90% RH non-condensing
POE		IEEE802.3af/at, MAX 30W, MAX power 150W
Power		AC110-265V 2.5A
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation
Default Mode		Common switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Physical Specifications		Product Size:440mm290mm45mm(LWH) package Size:497mm393mm97mm(LWH) 4Kg
