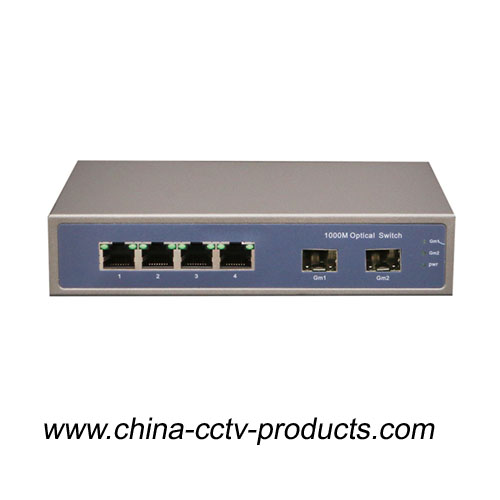

6 Port Full Gigabit CCTV Poe Switch (POE0402SFP-3)

6 Port Full Gigabit CCTV POE Switch (POE0402SFP-3)

Description:

4GE POE+2SFP.

Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.

Comply to POE IEEE 802.3af/at standard, all ports standard testing.

Support POE IPC camera, POE WIFI AP, and POE IPPHONE.

Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.

Auto MDI/MDIX.

Upstream port lightning protection.

MAX 30W, MAX power 65W.

Store-and-forward.

All ports support wire speed switch, jumbo frame transmission.

Zero QFD, self-adaption.

Panel lights can monitor operative mode and malfunction analysis.

Over-voltage and under-voltage protection (Some other manufacturers' products don't support this).

Specifications:

Model		POE0402SFP-3
Electric Port	1000M POE	4
	SFP	2
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	16G
	MAC	4K
Environmental		Working Temperature:0ºC~40ºC Storage temperature :-40ºC~70ºC
		Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing
POE		IEEE802.3af/at, MAX 30W, MAX power 65W
power		DC52V 1.25A AC 110~220V 50/60HZ
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T G IEEE 802.3z 1000BASE-X G IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control
Default Mode		Common switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m) 1000Base-T: Pair 4 Category 5(Cat5e)and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Physical Specifications		Product Size:165mm104mm35mm(LWH) package Size:300mm175mm100mm(LWH) 1.0kg
