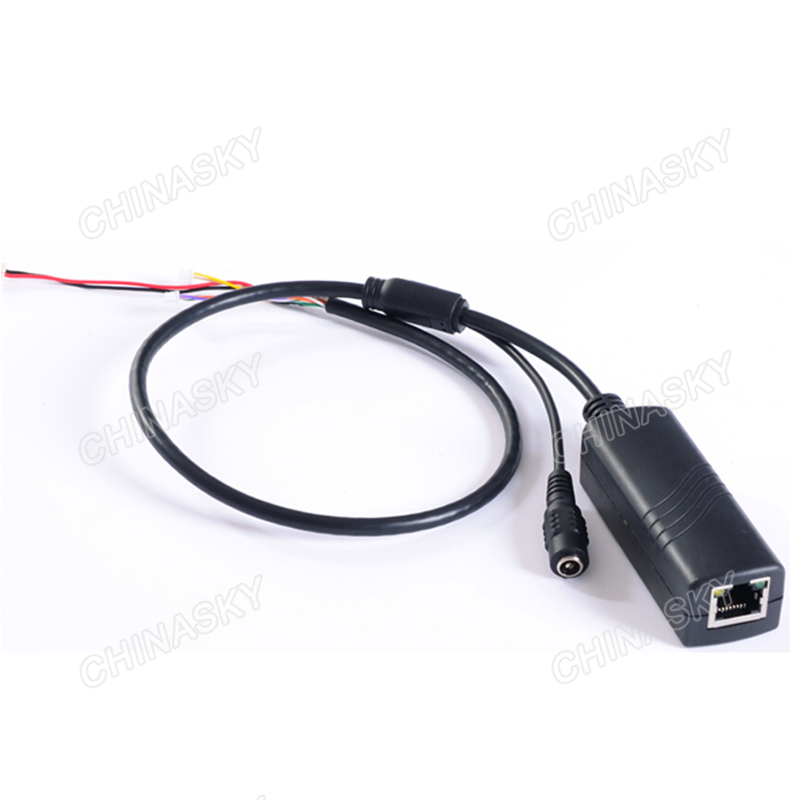

Non-isolated IP Camera POE Power Supply Splitter (PD03)
1.Features of the Passive PoE Injector Splitter:
This type of POE Splitter cable is our independent research and development of IP Camera POE Camera cable, meet IEEE802.3AF/AT standard, can be separated power from data signal through net cable transmission. PD03 supporting the use of PSE equipment which meet IEEE802.3AF/AT standard, such as POE Switch and so on, also provide data and power for which doesn’t support POE network equipment. PD03 support width voltage DC44-55V input, DC12V output, cooperate with power supply equipment, used in the places where lack of power cable or away from power plugs. For example, IP Camera, Wireless AP, IP Phone, etc. Through this way to solve IP Camera restrictions.
2.Technical specifications of the Passive PoE Injector Splitter:
Product |
POE Power Supply Splitter |
Model |
PD03 |
Support Standard |
IEEE802.3af,IEEE802.3at |
Port |
LAN Port:1 10/100M Adaptive RJ45 Port POE Port:1 10/100M Adaptive RJ45 Port |
Basic Function |
Compatible with IEEE802.3af/at standard Max. transmission distance is 100m Plugs and play, without management |
LED Indicator |
POE Power/LAN Network working state |
Input Voltage |
DC44V-57V |
Output Power |
(12VDC) 15.4W/24W |
Using Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity : 10%~90% non condensing Storage Humidity : 5%~90% non condensing |
POE Type |
End-span |
POE Port Characteristic |
Port Output Power 15.4W/IEEE802.3af/at25.5W |
POE Power Supply Method |
Both 1/2+3/6- and 4/5+7/8- |
Size |
650mm*30mm*24mm(L*W*H) |
3.Product qualification and deliver, shipping and serving of the Passive PoE Injector Splitter:
4.FAQ
N: Standard
Working normally as other Poe Switch in the market.
V: Port isolation
All the POE ports will be isolated from each other(not included the uplink ports)
It means the the devices connected on the poe ports can't meet each other, but can connect the internet or other device through the uplink port.
S: 250 meters model
Switch to “S” mode, downlink speed limit is 10M, to achieve Maximum 250 meters signal and POE power supply
Working Humidity :10%-90% RH non-condensing
50~500pcs: 15 days
500pcs~2000pcs: 25 days
