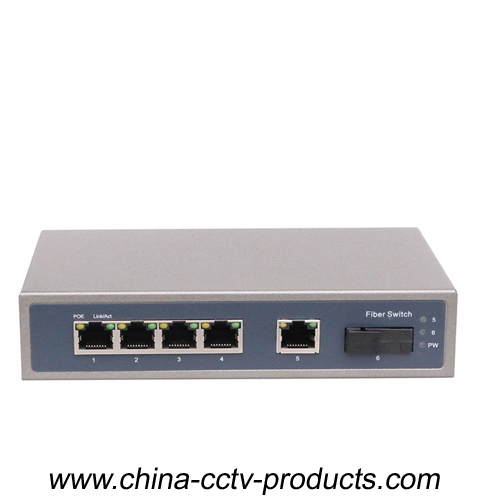

6 Port Fiber Switch with 1FE+1SC

Product Name: 6 Port Fiber Switch with 1FE+1SC
Weight: 1 Kg
Model NO.: SW0501SC
Size: 165mm*104mm*35mm
Origin: China
Packing: Paper Box
Brand Name: Chinasky

Product Details: 6 Port Fiber Switch with 1FE+1SC

6 Port Fiber Switch with 1FE +1SC (SW0501SC)

Description:
SW0501SC is applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission. This device comes with SC port, easy for optical fiber remote transmission.

Features:
5FE +1SC.
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
SC-ST 25KM.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
MAX 30W, MAX power 65W.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.

Specifications:

6 Port Fiber Switch with 1FE +1SC (SW0501SC)
Model		SW0501SC
Electric Port	100M Rj45	5
	100M SC	1
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	1G
	MAC	2K
Environmental		Working Temperature:0ºC~40ºC Storage temperature :-40ºC~70ºC
		Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing
power		DC48V 1.25A AC 110~220V 50/60HZ
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control
Default Mode		Common switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) SC-ST Fiber Max Transm 20KM
Physical Specifications		Product Size:165mm104mm35mm(LWH) package Size:300mm175mm100mm(LWH) 1kg
