2 Port SFP + 16 Port RJ45 Ethernet Gigabit Switch

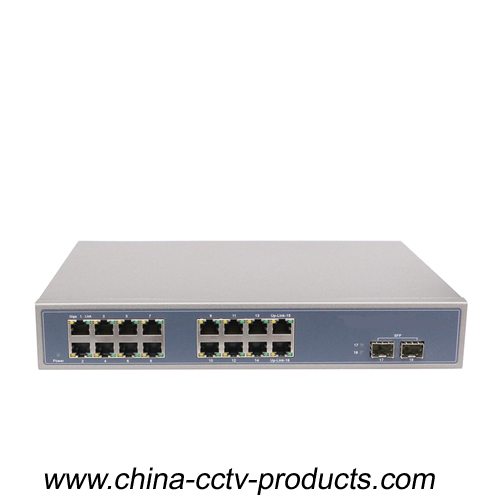

Product Name: 2 Port SFP + 16 Port RJ45 Ethernet Gigabit Switch
Weight: 1.9 Kg
Model NO.: SW1602SFPS-3
Size: 285mm*220mm*45mm
Origin: China
Packing: Paper Box
Brand Name: Chinasky
Minimum Order: 50
Supply Ability: 100000 PCS Per Year

Product Details: 2 Port SFP + 16 Port RJ45 Ethernet Gigabit Switch

2 Port SFP + 16 Port Rj45 Ethernet Gigabit Switch (SW1602SFPS-3)

Description:
SW1602SFPS-3 is applied to IPC camera, Wireless AP, and IP Phone, and easy for network transmission.
This device comes with SFP port, easy for optical fiber remote transmission.

Features:
2SFP+16GE, with different modules, can up to 100KM.
500M CPU, 52G bus.
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.

Specifications:

2 Port SFP + 16 Port Rj45 Ethernet Gigabit Switch (SW1602SFPS-3)
Model		SW1602SFPS-3
Electric Port	1000M Rj45	16
	SFP	2
Function	ExchangeMechanism	Store-and-forward
	Exchange Capacity	52G
	MAC	8K
Environmental		Working Temperature:0ºC~40ºC Storage temperature :-40ºC~70ºC
		Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing
power		DC12V 2A AC 110-220V 50/60HZ
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T G IEEE 802.3z 1000BASE-X G IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation
Default Mode		Common switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000Base-T: Pair 4 Category 5 (cat 5e)and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Physical Specifications		Product Size:285mm220mm45mm(LWH) package Size:410mm280mm95mm(LWH) 1.9kg
