16 Port Enhanced & Full Gigabit Switch with Built in Power

Product Name: 16 Port Enhanced & Full Gigabit Switch with Built in Power
Weight: 2.7 Kg
Model NO.: SW16G
Size: 440mm*209mm*45 mm
Origin: China
Packing: Paper Box
Brand Name: Chinasky

Product Details: 16 Port Enhanced & Full Gigabit Switch with Built in Power

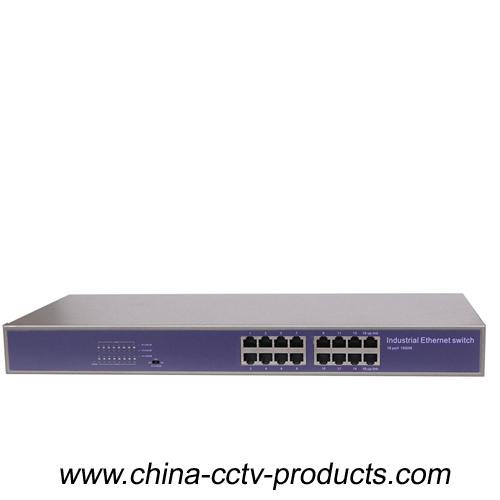

16 Port Enhanced & Full Gigabit Switch with Built in Power (SW16G)

Description:
SW16G is applied to IPC camera, Wireless AP, and IP Phone, and easy for network transmission.

Features:
16GE, 500M CPU, 52G bus.
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.

Specifications:

16 Port Enhanced & Full Gigabit Switch with Built in Power (SW16G)
Models		SW16G
100M Rj45		16
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	52G
	MAC	8K
Environmental		Working Temperature:0ºC~40ºC Storage temperature :-40ºC~70ºC
		Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing
power		AC110-265V 50/60HZ
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T G IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation
Default Mode		Common Switch
Match		VLAN isolation
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000Base-T: Pair 4 Category 5 (cat 5e)and above UTP/STP(≤100m)
Physical Specifications		Product Size:440mm209mm45 mm(LWH) package Size:497mm373mm93 mm(LWH) 2.7kg
