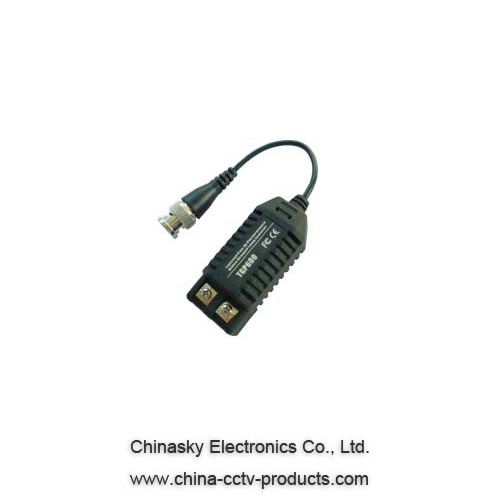

Twisted Pair Ground Loop Isolator GP100
Description:

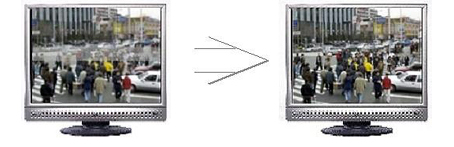

The Twisted Pair Ground Loop Isolator GP100 are passive devices which reduce Ground Loop Interference with CCTV
signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via
cable between points with different ground potentials. Differences in ground potentials are typically caused by
unbalanced power line loads.
Features:
Technical specifications:
|
Insertion Loss |
0.5dB |
|
Frequency Response |
20HZ- 10Mhz,+0/-3dB |
|
Input Resistance |
75 ohm |
|
Output Resistance |
100 ohm |
|
Isolation Voltage |
600VDC (Min) |
|
Insulation Resistance |
100M Ohm |
|
Transient Voltage Suppressor |
12 Vrms |
|
Dimensions (mm) |
72x28x22 |
|
Material |
ABS Black |
Installation View
The Video Ground Loop Isolator should be installed where runs of video cable are known to have ground loops. It must
be installed in the video cable that has come directly from the camera, but before the cable has been connected to
anything else.
If several video cameras come from the same area, fix a Video Ground Loop Isolator In every cable, or a ground loop will
still remain.

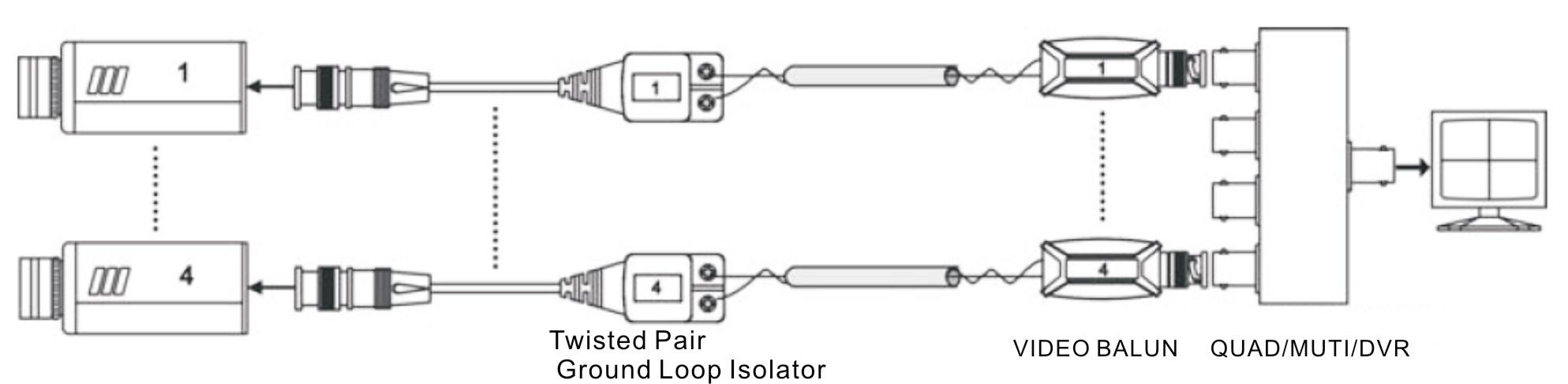

Application Diagram
