Sound CCTV Microphone for Camera and Audio Surveillance DVR (CM501C)

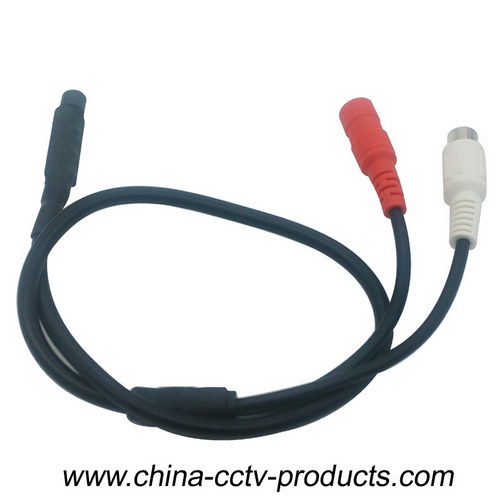

Product Name: Sound CCTV Microphone for Camera and Audio Surveillance DVR (CM501C)
Weight: 20 g
Model NO.: CM501C
Size: 30mm*7.5mm*6.7mm
Origin: China
Brand Name: Chinasky
Minimum Order: 100

Product Details: Sound CCTV Microphone for Camera and Audio Surveillance DVR (CM501C)

Sound CCTV Microphone for Camera and Audio Surveillance DVR (CM501C)

Feature:

Hidden installation,

high sensitivity, high-fidelity, clear voice, low noise, fashionable appearance, suit for various occasions.

Brand	Chinasky
model number	CM501C
work voltage	9 ~ 12VDC
work current	18mA
Frequency	50 ~ 13Khz
Output impedance	600 ohm non equilibrium
pickup range	5~50m2
color	black
other	mini hidden mics
	plug and play
	easy install

What is our micrphone for?

This audio surveillance microphone can be added to any surveillance system with audio input. The CCTV microphone is typically used as an add-on to CCTV cameras that do not have built-in audio.

This microphone is stand alone as it does not rely on the power source from a security camera. Plug and play cables can be used with these microphones to easily run both the audio and power centrally back to the DVR.

The Mic comes with its own 12V DC power supply and can be used with CCTV Camera Pros stand alone surveillance DVRs or PC based DVRs, such as Geovision.

Because the microphone has a female RCA input and most DVRs have RCA inputs for the microphone inputs, we include two BNC to RCA converters for each end of the plug and play cable. Order the cable with this microphone and the converters are included. See the below audio surveillance connection diagram for more information.
