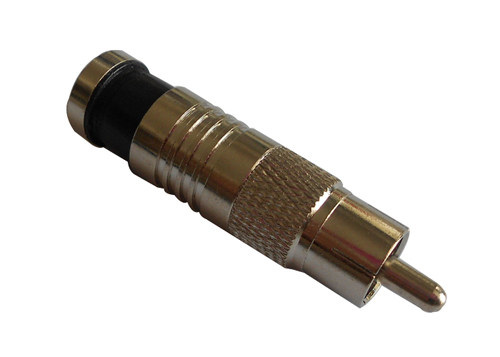

RCA Male Compression Connector for RG59 Cable / CCTV Connector CT5082/RG59
Description:
RCA Male Compression Connector for RG59 Cable
The RCA RG59 Compression Connector for Coax features 360-degree true radial compression.
Material:
Body—zinc alloy, nickel plated
center pin—zinc alloy, nickel plated
Net Weight: 17g/piece
Application:
An RCA connector is a plug and a jack designed for use with coaxial cable for frequencies ranging from the very lowest up to
several megahertz. An RCA connector is sometimes known as a phono plug and jack.
The plug shell is slotted rather than threaded, to facilitate quick insertion to, and removal from, the female jack or receptacle.
Contact is maintained by physical pressure between the slotted shell of the plug and the smooth cylindrical barrel of the
jack. The plug shell is connected to the outer conductor, or shield, of the coaxial cable, normally at electrical ground. The
center pin of the plug is connected to the cable center conductor, which carries the signal. In the jack, the barrel is grounded
and the center hole is plated inside to conduct the signal.
RCA connectors are suitable for audio-frequency (AF) applications. They are also used in radio-frequency (RF) systems at low and medium frequencies, and at power levels up to approximately 100 watts. At higher
frequencies or higher power levels, larger connectors are necessary. RCA connectors are designed for cables with small
outside diameters (less than 6 or 7 mm) and are intended for indoor use only.
