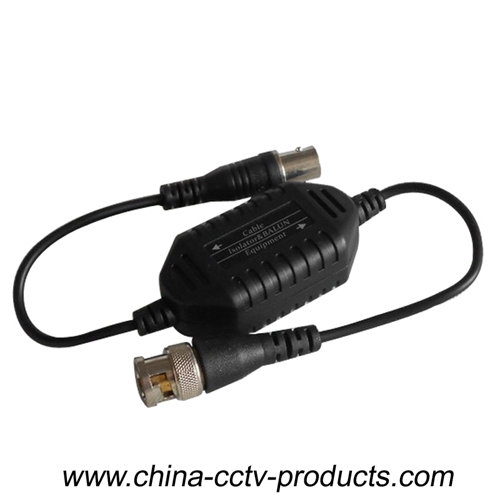

Passive Video Ground Loop Isolator for CCTV with 15CM Cable, Video Ground Loop Isolator

Product Name: Passive Video Ground Loop Isolator for CCTV with 15CM Cable, Video Ground Loop Isolator
Model NO.: GB200
Origin: CN
Packing: Paper Box
Brand Name: Chinasky
Delivery Time: 5~7days
Minimum Order: 50pcs
Quality System Certification: CE, ROHS

Product Details: Passive Video Ground Loop Isolator for CCTV with 15CM Cable, Video Ground Loop Isolator

BNC male to BNC female with mini cable 15CM on both sides
Passive type, no power need
Prevents video-signal distortion caused by video ground loops
Prevents power cables laid by others interfering with the CCTV system
Output Resistance:75 ohm
Isolation Voltage:600VDC (Min)
Insertion Loss:0.5dB

Passive Video Ground Loop Isolator for CCTV with 15CM Cable, Video Ground Loop Isolator

Description:

The Video Ground Loop Isolator GB200 are passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentias. Differences in ground potentials are typically caused by unbalanced power line loads.

Features:

BNC male to BNC female with mini cable 15CM on both sides
Passive, no power required
Prevents video-signal distortion caused by video ground loops
Eliminates picture tearing, cross talk and rolling
Prevents power cables laid by others interfering with the CCTV system
Built in TVS (Transient Voltage Suppressors) for surge protection
Built in Video filter, perfect to work with DVR to immunity DVR interference, for extra interference rejection
Others same as Ground Loop Isolator function
Weight: 100g/pc

Technical specifications:

Insertion Loss	0.5dB
Frequency Response	20HZ- 10Mhz,+0/-3dB
Input Resistance	75 ohm
Output Resistance	75 ohm
Isolation Voltage	600VDC (Min)
Insulation Resistance	100M Ohm
Transient Voltage Suppressor	12 Vrms
Dimensions (mm)	722821 with 25cm*2 cable
Material	ABS Black

Installation View:

The Video Ground Loop Isolator should be installed where runs of video cable are known to have ground loops. It must be installed in the video cable that has come directly from the camera, but before the cable has been connected to anything else.

If several video cameras come from the same area, fix a Video Ground Loop Isolator In every cable, or a ground loop will still remain.
