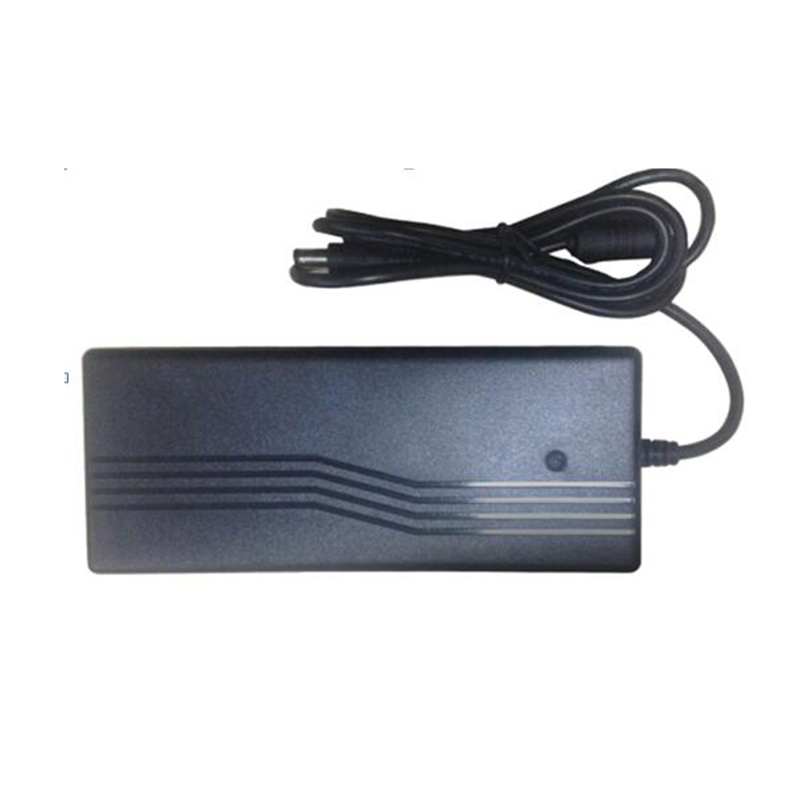

DC 52V 120W POE Switch Power Supply Adapter (S522300D)
Features:
This type POE Power Supply Adapter is designed by our R&D team, input voltage AC 110V-240V 50/60Hz, output voltage is DC52V, power is 120W, cooperated with POE switch, can be supply power to POE switch.
Specifications:
|
Product |
POE Switch Application Power Supply Adapter |
|
Model |
Power Supply Adapter S522300D |
|
Input Voltage |
AC 110V-240V 50/60Hz |
|
Output Voltage |
DC52V |
|
Output voltage accuracy |
≤±2% Vo |
|
Output Current |
2300mA |
|
Output Power |
120W |
|
Short circuit protection |
It will be a burp protection after short circuit, the automatic recovery appeared after the short circuit been removed |
|
Over current protection |
≤110%-200%I0, it will be a burp protection after over current protection, over current protection under the condition of the state to reduce the load can automatically resume normal output |
|
Idle standby power consumption |
≤2W |
|
Efficiency |
≥85% |
|
Working frequency |
65KHz |
|
Ripple and noise |
≤240mV |
|
Surge current |
＜50A |
|
AC leakage current |
＜10mA |
|
High pressure |
Input –output 1.5KV,input –housing 1.5KV |
|
Insulation resistance |
≧50MΩ |
|
Standard |
GB8898-2011 GB13837-2012 GB17625.1-2012 |
|
Input |
3-PIN AC |
|
Working environment |
0℃-+40℃ |
|
Weight |
0.3kg |
|
Dimension |
134*61*35mm |
