1. Video Format:NTSC, PAL, and SECAM
2. Channel: 1 CH
3. Impedance:
Coax, Male BNC: 75 ohms
RJ45/Terminal Block: 100 ohms
4. Transmission Distance: 2400m
5. Medium: Cat5 Cable
6. Connector: Female BNC, RJ45 and Terminal Block
7. Certification: CE, RoHS
8. Power: 12VDC (Max:90mA)

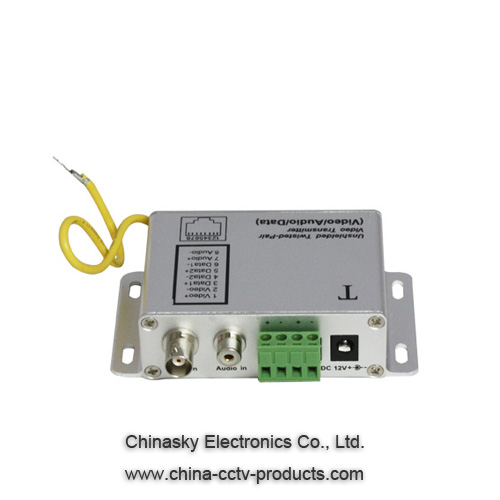

Coax to Cat5 Active Video Audio Data Balun, Twisted Pair Video Balun, VB302T
Description:
The VB302T active UTP video Transmitter converts the unbalanced signal into balanced signal and transmits the signal after pre-raise. Receiver receives balanced signal to convert it into unbalanced signal and restores the received signal with one channel of audio transmission function and two channels of data (or standby interface) with perfect receiving effect, which can be applied in the occasions such as video monitoring and video meeting, simplify the wiring project and save wire use quantity.
Features:
Technical specifications:
Video Format |
NTSC, PAL, and SECAM |
|
Frequency Response |
DC to 8MHz |
|
Attenuation |
0.5dB typ |
|
CMRR |
60 dB |
|
Impedance |
Coax, Male BNC |
75 ohms |
RJ45/Terminal Block |
100 ohms |
|
Working environment |
Working Temperature |
-10℃ to +70℃ |
Storage Temperature |
-30℃ to +70℃ |
|
Humidity |
0 to 95% |
|
Wire Type |
UTP5 |
|
Connector |
Female BNC, RJ45 and Terminal Block |
|
Power |
12VDC (Max:90mA) |
|
Case |
Metal |
|
Dimension |
105mm*70mm*29mm |
|
Weight |
185g/pc |
Type of the required wire:
Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
Characteristic impedance:100Ω±20Ω
DC loop resistance: 18Ω/100m
Differential capacitance: 62pf/m (maximum)
Connection method:
Connect the two-color wires of a pair of Cat-5 unshielded twisted pair wire to the ‘+’ terminal of the green socket and connect the single-color wires to the ‘-’ terminal of the green socket. Connect the BNC interface of the transmitter to the BNC interface of the camera. If there is any joint in the circuit, please adopt welding method or special junction box to ensure perfect contact at the joint. Please be sure to connect the interface marked with ‘’ symbol to the ground wire of the lighting-proof system with the copper conductor with sectional area≥1.5 mm2!
The clamping order of the modular plug is shown as follows:
Adjusting method:
Adjust and slide the switch according to the distance. The switch can be slid to the lowest level when the distance is between 1400m and 1700m, the switch can be slid to the middle level when the distance is between 1700m and 2000m and the switch can be slid to the highest level when the distance is more than 2000m (as shown in following figure). This data is the test result of our company with standard unshielded Cat-5 twisted pair wire and it can be applied flexibly according to the actual wire situation in the practical application.
Frequently Asked Questions:
Why does my video look like a scrambled Cable TV signal?
This typically indicates reversed polarity.
Can shielded twisted pair be used?
Some customers have successfully used shielded wire up to a few hundred feet. However we does not recommend it. Its high-frequency roll-off will severely degrade the distance performance.
Can Category 6 wire be used?
Yes. Unshielded Twisted Pair wire, Category 5 or better, can be used with UTP video transceiver.
Can I transmit more than one video signal in a multi-pair wire bundle?
Yes. One of the benefits of using UTP video transceivers is interference rejection. UTP video signals can reside in the same wire bundle as multiple video signals, ringing telephones, Ethernet, low voltage power, RS-422, RS-485, etc.
Application Diagram:
