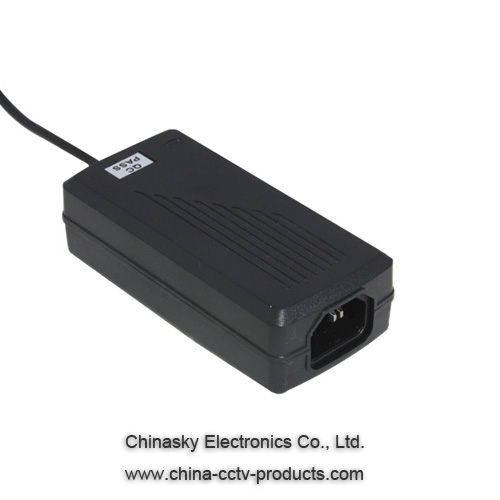

12VDC 4Amp CE(LVD & EMC) & IEC60950 Desktop Type CCTV Security Camera Power Supply S1240D
Descrition:
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access,
building/house control, intrude alarm and other light-current device.
Technical specifications:
|
Model |
S1240D |
|
|
Power |
48W |
|
|
Dimension |
111x53x32cm |
|
|
Net Weight |
183g(without AC cord) |
|
|
Type |
Desktop |
|
|
Input |
Input Voltage |
100-240VAC |
|
Input Voltage Frequency |
50Hz-60Hz |
|
|
AC Cord |
1.2m |
|
|
AC plug |
EU, or US, or UK, or South African Type |
|
|
Output
|
Output Voltage |
12VDC±5% |
|
Output Current |
4A |
|
|
DC cord |
1.2m |
|
|
DC plug |
5.5*2.1*12mm |
|
|
Regulated |
Yes |
|
|
Circumstances |
Working Temperature |
0℃-+50℃ |
|
Storage Temperature |
-20℃-+80℃ |
|
|
RH |
20%-90% |
|
