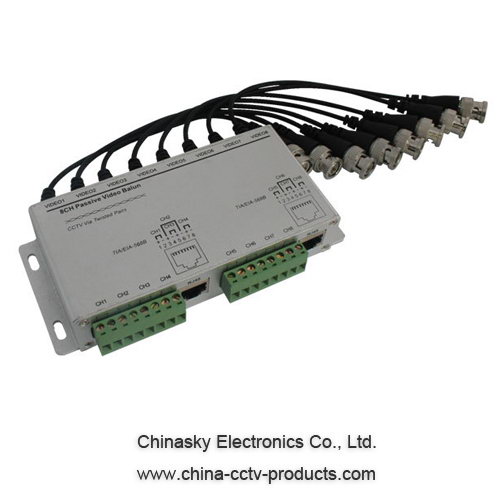

8 Channel Passive CCTV UTP Video Balun , Video Transceiver VB208A
Description:
The CCTV video balun VB208A is to convert the video signal into the balanced signal applicable to be transmitted onFeatures:
Technical specifications:
Video Format |
NTSC, PAL, and SECAM |
|
Frequency Response |
DC to 8MHz |
|
Attenuation |
0.5dB typ |
|
CMRR |
60 dB |
|
Impedance |
Coax, Male BNC |
75 ohms |
RJ45/Terminal Block |
100 ohms |
|
Working environment |
Working Temperature |
-10℃ to +70℃ |
Storage Temperature |
-30℃ to +70℃ |
|
Humidity |
0 to 95% |
|
Wire Type |
UTP5 |
|
Connector |
Female BNC, RJ45 and Terminal Block |
|
Power |
No power required |
|
Case |
Aluminum alloy |
|
Dimension |
157mm*80mm*29mm |
|
Weight |
360g/pc |
Connection method:

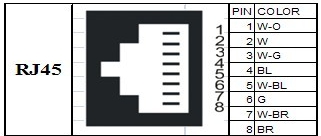

Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure).connect the clamped modular plugs to the RJ45 sockets.connect the coax to the connection terminal.
Application Diagram:
