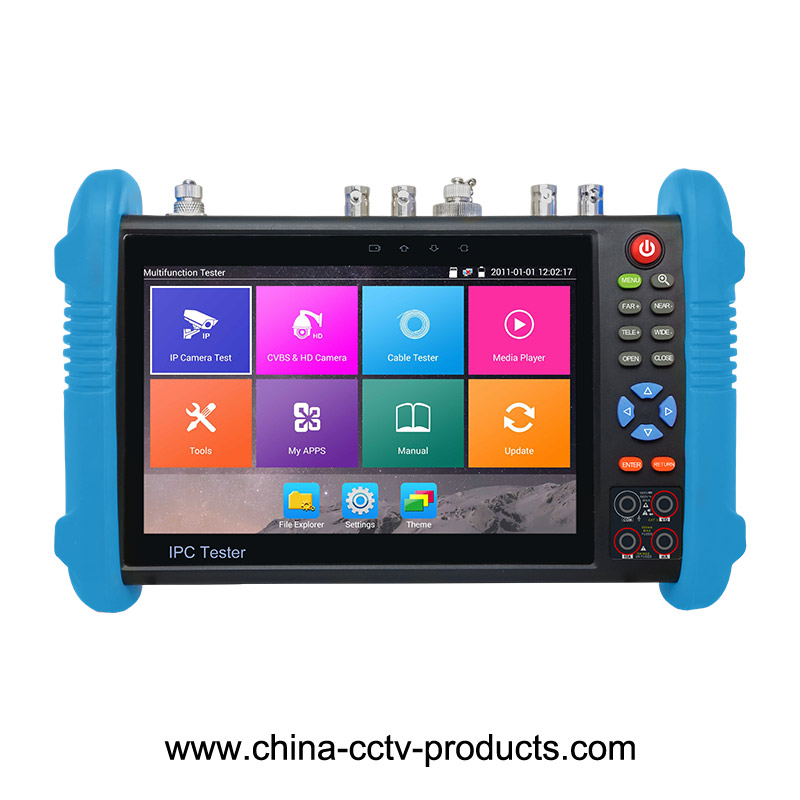

7inch IP Camera CCTV Tester with Android System (IPCT9800MOVTHDASPlus)


7 inch IPS touch screen, 1280*800 resolution
RJ45 cable TDR test, cable quality test
H.265/H.264, 4K video display via mainstream
Dual window test, IP &Analog camera test
Built in WIFI, create WIFI hotspot
HDMI input and output,support1080p
IP discovery , shortcut button, drop-down menu
DC12V 2A, DC48V PoE power output
Rapid ONVIF, auto view video and create testing report
Quick office (excel ,word ,PPT format ) doc.
UTP cable tester
Tester Play: Tester, android version mobile phone, PC display at the same time

Basic Model+AHD+TVI+CVI+SDI+Digital Multi-meter+Optical power meter+Visual fault locator+TDR cable test+HDMI INPUT AND OUTPUT

Description:
The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 Cable TDR cable test, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Applications:
-CCTV system installation and maintenance
-Network cabling project installation and maintenance
-Dome camera, IP 4K H.265 camera testing
-Video transmission channel testing
-PTZ controller

Features:

1. New -7 inch IPS touch screen,1280*800 resolution
2. New- H.264 and H .265 ,4K video display via mainstream
3. IP & CVBS camera test, PTZ controller
4. New- Rapid video, just by one key to detect all network cameras and auto display
5. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
6. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
7. New- Screen management, change function's icons order, create new directory
8. New- Shortcut button, drop-down menu, can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
9. Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
10. New- RJ45 cable TDR test, testcable pair status, length, attenuation, reflectivity, impedance, skew etc
11. TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time
12. New- Screen lock, password lock and pattern lock are optional
13. New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
14. HDMI output ,support 1080P
15. New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable
16. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
17. New- Customers self update software ,you can install apps with android version ,such as Skype,wechat etc
18. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
19. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
20. New- 4K video files and MKV/MP4 media files play
21. PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
22. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
23. 8GB SD card including
24. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
25. Display its genuine resolution of the IP camera images
26. Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
27. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
28. POE voltage measurement, PING test ,IP address scan, port flashing etc
29. Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
30. 7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours


Technical specifications:

​​Product Picture
