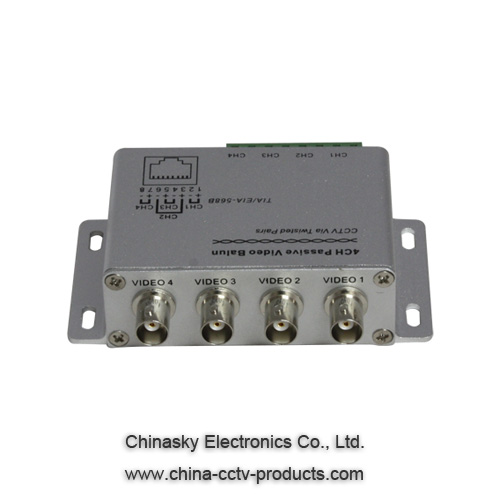

4 Channel Passive UTP CCTV Video Transceiver VB204

Product Name: 4 Channel Passive UTP CCTV Video Transceiver VB204
Model NO.: VB204
Origin: CN
Brand Name: Chinasky
Delivery Time: 15days
Minimum Order: 10pcs

Product Details: 4 Channel Passive UTP CCTV Video Transceiver VB204

4 Channel BNC to RJ45 /CAT-5 Video Transceiver, Passive CCTV UTP Video Balun VB204

Description:

The video balun VB204 is a passive transmission device that transmits video signal over unshielded twisted
pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to
install and cost effective, and does not require power. Working with an 8-core CAT-5 can transport 4 channel
video signals.
Its crosstalk and noise immunity ensure quality video signals.

Features:

Full-motion CCTV video at distances up to 330m when used with any passive transceiver

Up to 1500m with any active UTP video receiver

Outstanding interference rejection, transient protection

High quality image

It can work as video transmitter or video receiver

Compact size and easy installation

Aluminum alloy case

Connectors: Terminal block, RJ45, BNC female connector

Technical specifications:

Video Format		NTSC, PAL, and SECAM
Frequency Response		DC to 8MHz
Attenuation		0.5dB typ
CMRR		60 dB
Impedance	Coax, Male BNC	75 ohms
	RJ45/Terminal Block	100 ohms
Working environment	Working Temperature	-10℃ to +70℃
	Storage Temperature	-30℃ to +70℃
	Humidity	0 to 95%
Wire Type		UTP5
Connector		Female BNC, RJ45 and Terminal Block
Power		No power required
Case		Aluminum alloy
Dimension		105mm80mm29mm
Weight		198g/pc

Connection method:

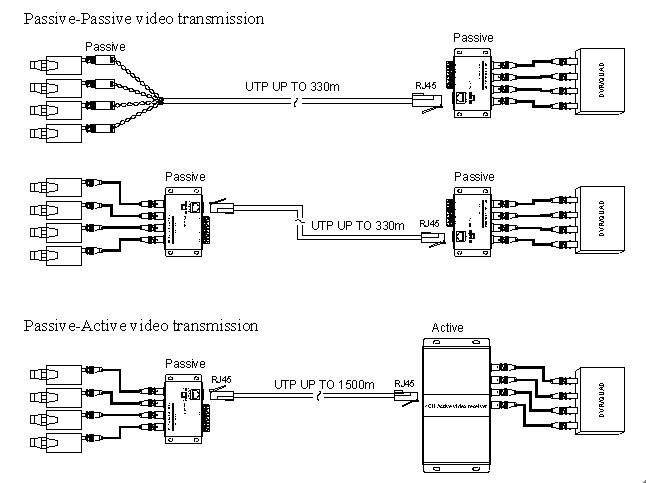

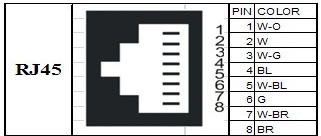

Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure).connect the clamped modular plugs to the RJ45 sockets.connect the coax to the connection terminal.
