3,5 in 1 out HDMI Switch

Product Name: 3,5 in 1 out HDMI Switch
Model NO.: HDMI3T1H
Origin: china
Brand Name: chinasky
Quality System Certification: CE,ROHS,FCC

Product Details: 3,5 in 1 out HDMI Switch

Features:

1.support for HDMI 1.4 version of 3D features. Full support for 1080p, support for 12-bit pixels.

2.support for video signal amplification up to: 2.5Gbps

3.manual switch remote control switch

4.support both ends of the 25 m long-distance transmission (to be equipped with power supply)

5.compatible with HDCP equipment

6.support for high-definition video, high quality and clear picture

Smart features:

1.when the switch is powered on, it will automatically select the source device that the power is on. The selected priority is 1-2-3

2.when you open a source device or the source device into the switch, it will automatically select the source device.

3.when you turn off the power of a source device or pull the source device from the switch, it will automatically select the next source is the source device is turned on, the selected priority is: 1-2-3

Description:

1.when the source device is in standby, its 5V power supply must be cut off, otherwise the switch can not realize the intelligent function.

2.when inserting or pulling out the HDMI cable, the switch is completely intelligent.

Package Contents:

HDMI splitter 1

1 remote control

IR infrared receiver 1

Technical Specifications:

1.signal input / output

Input video signal: 0.5-1.0 volts p-p

Input DDC signal: 5 volts p-p (TTL)

Single connection signal maximum range: 1920X1200, 1080P

Output video signal: HDMI1.3b 3D + HDCP1.0 / 1.1

2.support for video formats

VGA: 640x480, 800x600, 1024x768, 1920x1200

DTV / HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P

3.digital signal input / output

4.operating frequency

Frequency up to250MHz

Field frequency 60Hz

Video amplification bandwidth 2.5Gpbs / 250MHz

HD Support (HDTV)

Interlaced (50 & 60Hz) 480i, 576i, 1080i

Progressive scan (50 & 60Hz) 480p, 576p, 720p, 1080p

5.the product size

Size (length - width - height) 49MM * 50MM * 13MM

Weight (net weight) 47g

Model	Picture	Ports	Resolution	Remote control	Infrared receiver

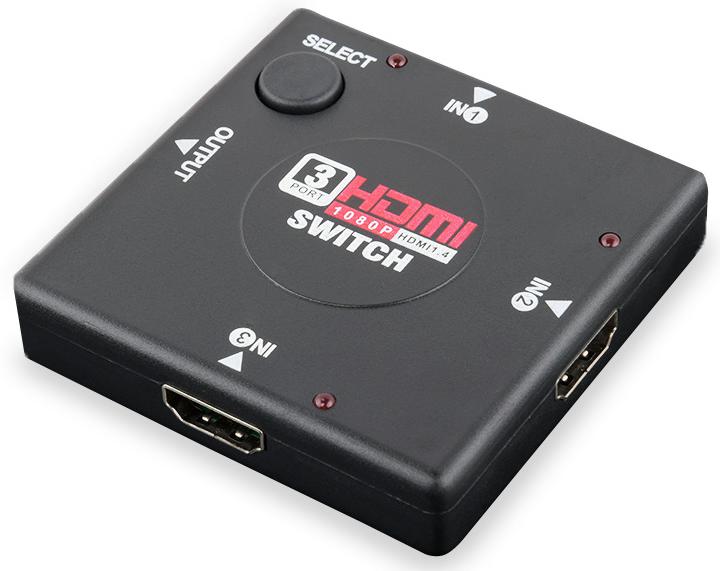

HDMI3T1A		3 in 1 out	1080p	No	No
HDMI3T1P				No	No

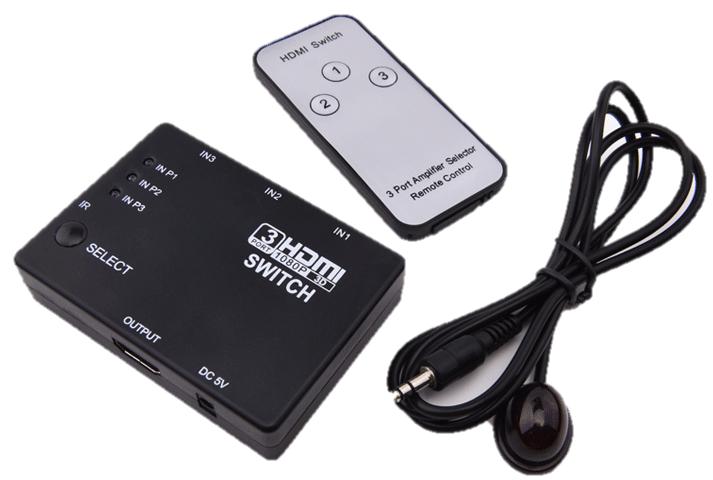

HDMI3T1				Yes	No
HDMI3T1				Yes	Yes
HDMI3T1HA			4k*2k	No	No
HDMI3T1HP				No	No

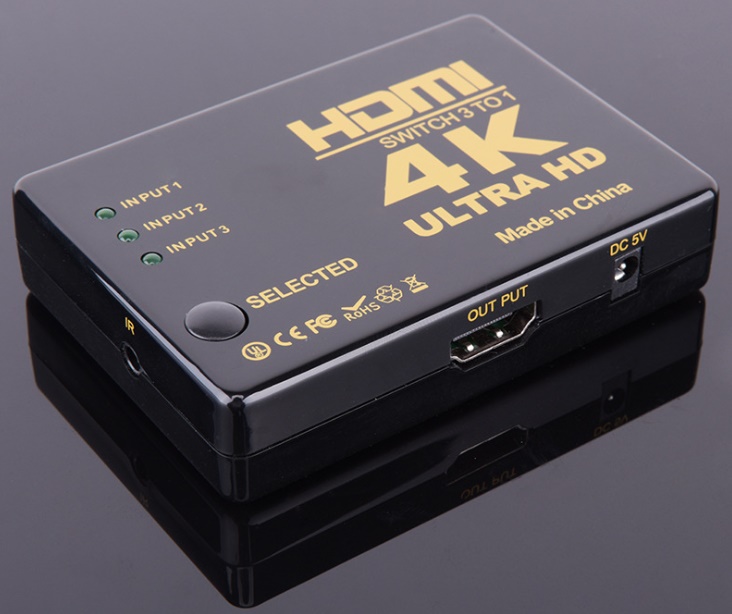

HDMI3T1H				Yes	Yes

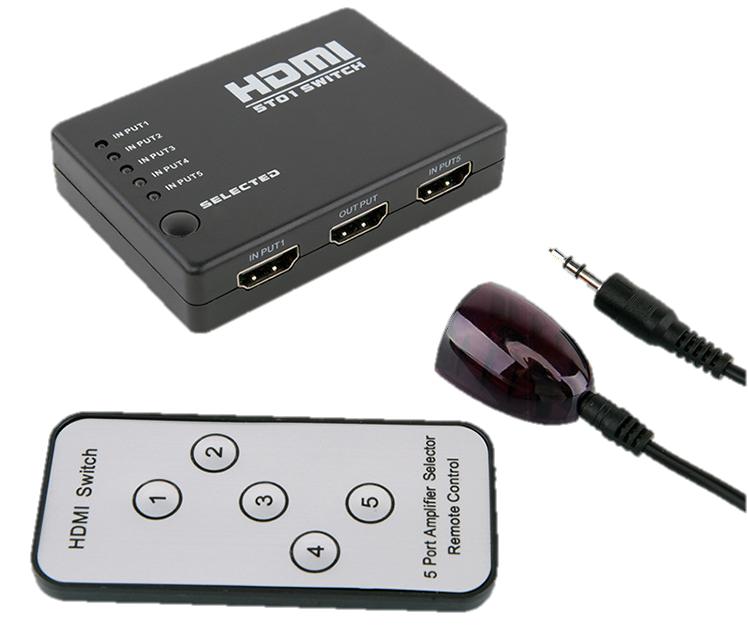

HDMI5T1		5 in 1 out	1080p	Yes	Yes

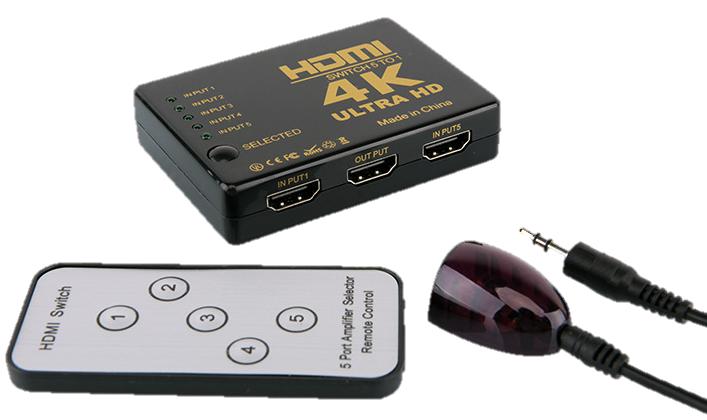

HDMI5T1H		5 in 1 out	4k*2k	Yes	Yes
