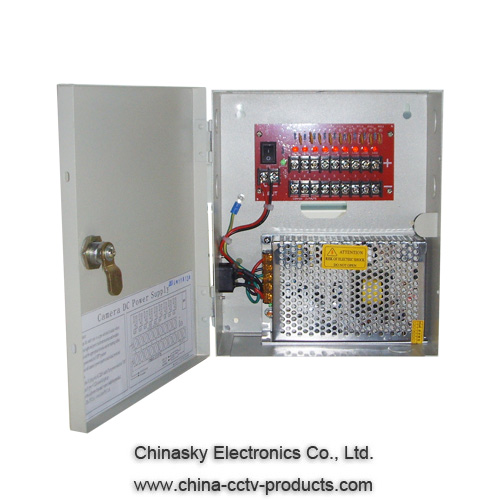

12VDC 5Amp 9 Channel CCTV Power Supply with Lock 12VDC5A9P

Product Name: 12VDC 5Amp 9 Channel CCTV Power Supply with Lock 12VDC5A9P
Model NO.: 12VDC5A9PL

Product Details: 12VDC 5Amp 9 Channel CCTV Power Supply with Lock 12VDC5A9P

Features:
12VDC 5Amp 9 Channel CCTV Power Supply with Lock 12VDC5A9P
-- Power up to 9 CCTV CCTV surveillance cameras
-- 12 Volts DC
-- 5 Amp total output
-- Max output current up to 1.1 Amp/Channel
-- 9 individually PTC auto-reset fuses protected outputs with LED indicator
-- With Lock

Specifications:
CCTV Power Supply box
Input: 88-264VAC, 50Hz-60Hz
Output: 12V DC 5Amp
1 in 9 Out CCTV Power Distribution Box (9 channels)
Switch mode power supply (regulated voltage)
Over voltage, over current, and short-circuit protections
Integral Surge Protection
Individual LED power indication
Individual PTC Reset-able Fuses Output Protection
Internal On/off safety power switch with LED indicator
Beige metal housing
Dependable and long lasting

Standards: CE/IEC/RoHS

Packing Details:
Metal Case Size: 24.5(L)*20.6(W)*8.8(D)cm
Net weight: 1912g (without AC cord)
Inner Paper Box Size: 25*21*9.3cm
Outer Carton Size: 52*40*23.5cm
Packing rate: 8PCS/CTN

Remark:
 This is one of the best 12VDC CCTV power supply boxes on the market for security cameras.
 We also replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.
 The red light shorts indicator helps you to know which camera is not working.
 Warranty: 2 years
