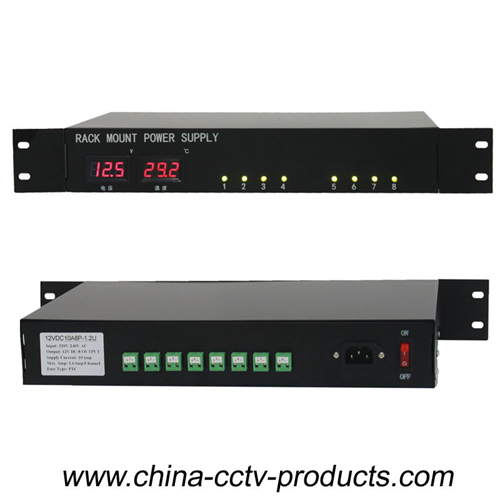

China 12V DC 13A LED Display CCTV Rack Mount Power Supply (12VDC13A8P-1.2U),12V DC 13A LED Display CCTV Rack Mo...
POE Switches
(60)
CCTV Power Supplies
(82)
Video Baluns
(39)
CCTV Connectors
(74)
CCTV Testers
(19)
CCTV Tools
(17)
CCTV Cables
(15)
CCTV Microphones
(33)
Ethernet Switch
(18)
Video Converters
(3)
Video Extenders
(4)
IP Extenders
(3)
Overview:
Input 110/220 V AC
Output 12V DC.8channels
13 Amp Supply Current
Integral Surge Protection
Individual LED Power Indication
Individual PTC Output Protection
Max. Amp: 1.85Amp/ch
1.2U rack mount
Features:
1.Soft starting current, effectively reduce the impact of AC input, independent short-circuit protection and surge protection, resume automatically after clearing of fault, EMI filter, minimum ripple, 100% load test, quality guarantee, high efficiency, low T-rise, continuous duty
2.Input with a switch, LED indicators lighten when the power supply operates normally, and each output contains independent PTC, LED indicator, which is not interfere with each other
3.Convenient installation, save a lot of time and labor
4.Packing with color box
Technical specifications:
|
Model |
12VDC13A8P-1.2U |
|
|
Specification |
150W12V13A8P/R |
|
|
Shape Dimension |
38x25.1x6.7cm |
|
|
Weight |
4kg |
|
|
Input |
Input Voltage |
110/220VAC |
|
Input Voltage Frequency |
50Hz-60Hz |
|
|
Average Input Current |
100Vac≤1.0A |
|
|
Efficiency |
≥80% |
|
|
Output
|
Output Voltage |
12VDC±5% |
|
Output Current |
13A.8channels for 8 sets load |
|
|
Output Ripple Noise(Vp-p) |
100mVp-p@25℃/ Rated input voltage & Output rated load |
|
|
reply time of starting up |
≤3S Input 100Vac.Output rated load |
|
|
Fuse |
Type /Rating |
PTC 1.85A/60V |
|
Protection |
Over voltage protection |
When over voltage occurs, it will be switch to self-protection status to protect the load. |
|
Over current protection |
When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output work normally, when clearing of fault, then switch back to normal. |
|
|
short-circuit protection |
When short-circuit occurs, individual PTC fuse will break the circuit, when clearing of fault, it switch back to normal automatically. |
|
|
Circumstances |
Working Temperature |
0℃-+50℃ |
|
Storage temperature |
-20℃-+80℃ |
|
|
RH |
20%-90% |
|
|
Heat release |
Natural heat dissipation |
|
|
Connection |
Input |
Three-pin socket |
|
Output |
8channels output |
|
|
Dielectric Strength |
Input to output |
1500Vac/60S leakage current≤1.5ma |
|
Input to FG |
1500Vac/60S leakage current≤2.0ma |
|
|
FG to output |
500Vac/60S leakage current≤1.5ma |
|
|
Insulating strength |
Input to output |
≥20MΩ/500VDC@25℃ |
|
Leakage Current |
≤0.21ma @AC110V(220V)/25℃ |
|
|
RG |
≤0.011Ω@DC8V/25A/25℃ |
|
|
Inspection Equipment |
YF9901 Digital Power Meter MW –MOS-620 20MHz Oscillograph |
|
|
DZ2672A Hi-pot Tester VC9802A DMM |
||
|
IT815 300W/0-120V Electronic Load DZ2620 Leak Resistance Tester |
||
|
WB2678A RG Tester |
||
