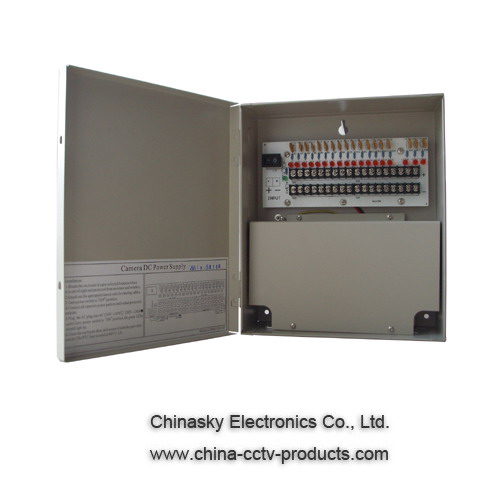

12VDC 10Amp 18 Ch Premium CCTV Power Distribution Unit 12VDC10A18P

Product Name: 12VDC 10Amp 18 Ch Premium CCTV Power Distribution Unit 12VDC10A18P
Model NO.: 12VDC10A18PN

Product Details: 12VDC 10Amp 18 Ch Premium CCTV Power Distribution Unit 12VDC10A18P

Features:
12VDC 10Amp 18 Ch Premium CCTV Power Distribution Unit 12VDC10A18P
• Power up to 18 CCTV surveillance cameras
• 12 Volts DC
• 10 Amp total output
• Max output current up to 1.1 Amp/Channel
• 18 individually PTC auto-reset fuses protected outputs with LED indicator

Specifications:
Input: 85-132VAC or 176-264VAC
Output: 12V DC 10Amp
1 in 18 Out premium CCTV power distribution unit (18 channels)
Switch mode power supply (regulated voltage)
Over voltage, over current, and short-circuit protections
Integral Surge Protection
Individual LED power indication
Individual PTC Reset-able Fuses Output Protection
Internal On/off safety power switch with LED indicator
Beige metal housing
Dependable and long lasting

Standards: CE/IEC/RoHS

Packing Details:
Metal Case Size: 24.5(L)*20.6(W)*8.6(D)cm
Net weight: 1976g
Inner Paper Box Size: 25*21*9.3cm
Outer Carton Size: 52*38*23.5cm
Packing rate: 8PCS/CTN

Remark:
 This is one of the best 12VDC CCTV power supply boxes on the market for security cameras.
 We also replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.
 The red light shorts indicator helps you to know which camera is not working.
 Warranty: 2 years
